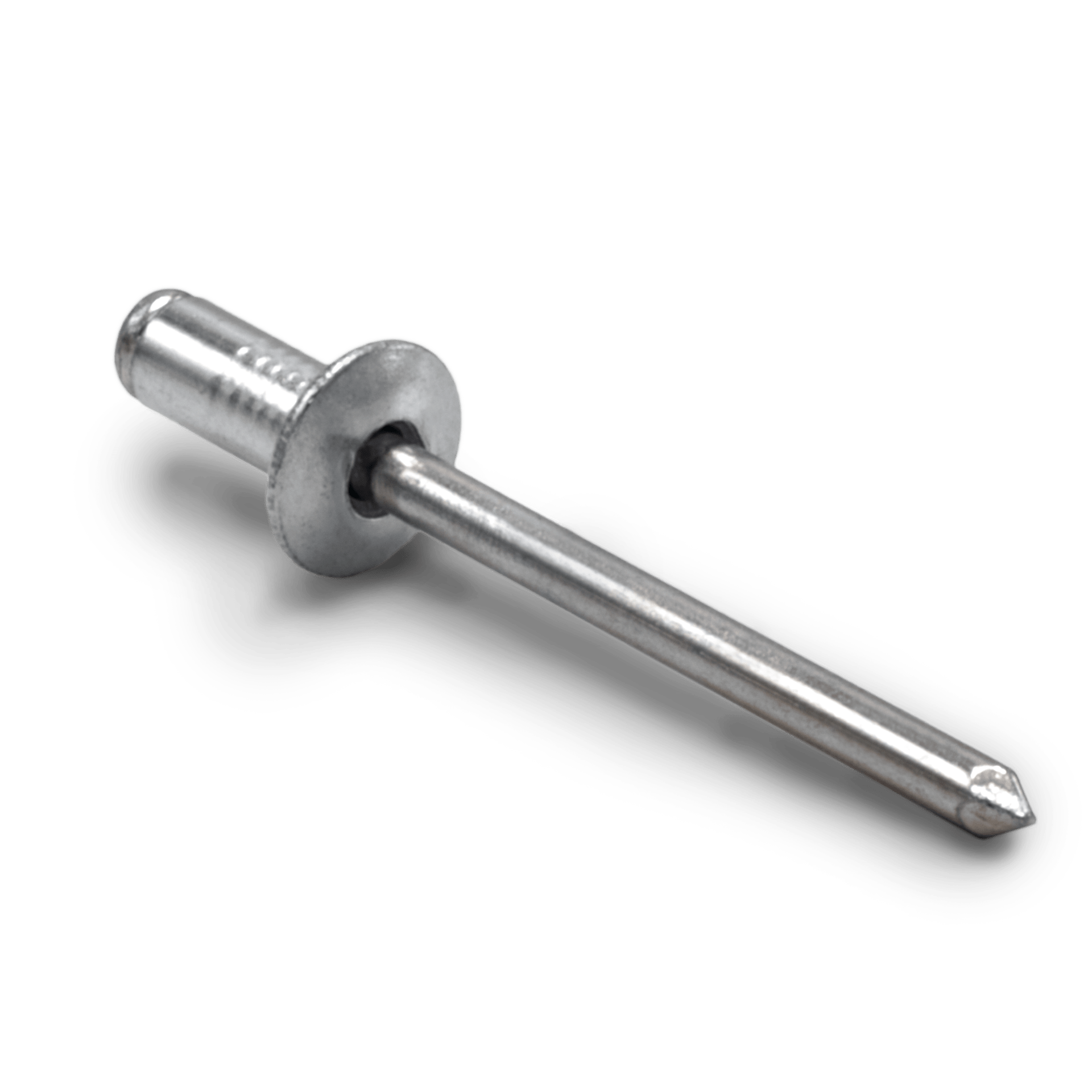

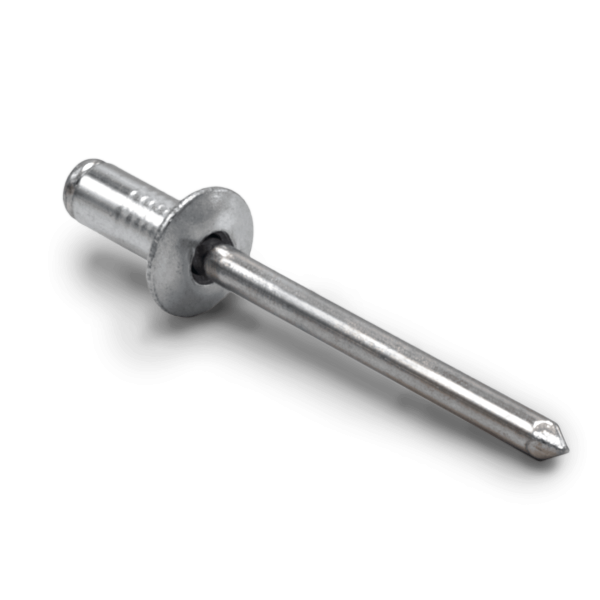

Beschreibung
| HOSI-Artnr.: | Material Niethülse | Material Nietnagel | Kopfform | Nietdurchmesser Ø ± 0,1 | Nietlänge mm ± 0,3 | Klemmbereich mm | Bohrloch | Mindestscherfestigkeit N | Mindestzugfestigkeit N |
|---|---|---|---|---|---|---|---|---|---|
| 2404 AF | Aluminium | Stahl vz. | Flachrundkopf | 2,4 | 4,0 | 0,5 - 2,0 | 2,5 | 350 | 550 |
| 2406 AF | Aluminium | Stahl vz. | Flachrundkopf | 2,4 | 6,0 | 2,0 - 4,0 | 2,5 | 350 | 550 |
| 2408 AF | Aluminium | Stahl vz. | Flachrundkopf | 2,4 | 8,0 | 4,0 - 6,0 | 2,5 | 350 | 550 |
| 2410 AF | Aluminium | Stahl vz. | Flachrundkopf | 2,4 | 10,0 | 6,0 - 8,0 | 2,5 | 350 | 550 |
| 2412 AF | Aluminium | Stahl vz. | Flachrundkopf | 2,4 | 12,0 | 8,0 - 10,0 | 2,5 | 350 | 550 |
| 3004 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,0 | 4,0 | 0,5 - 1,5 | 3,1 | 550 | 850 |
| 3006 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,0 | 6,0 | 1,0 - 3,5 | 3,1 | 550 | 850 |
| 3008 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,0 | 8,0 | 3,0 - 5,0 | 3,1 | 550 | 850 |
| 3010 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,0 | 10,0 | 5,0 - 7,0 | 3,1 | 550 | 850 |
| 3012 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,0 | 12,0 | 7,0 - 9,0 | 3,1 | 550 | 850 |
| 3014 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,0 | 14,0 | 9,0 - 11,0 | 3,1 | 550 | 850 |
| 3016 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,0 | 16,0 | 11,0 - 13,0 | 3,1 | 550 | 850 |
| 3018 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,0 | 18,0 | 13,0 - 15,0 | 3,1 | 550 | 850 |
| 3020 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,0 | 20,0 | 15,0 - 17,0 | 3,1 | 550 | 850 |
| 3205 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,2 | 5,0 | 0,5 - 2,5 | 3,3 | 750 | 1.100 |
| 3206 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,2 | 6,0 | 1,0 - 3,5 | 3,3 | 750 | 1.100 |
| 3208 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,2 | 8,0 | 3,0 - 5,0 | 3,3 | 750 | 1.100 |
| 3210 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,2 | 10,0 | 5,0 - 7,0 | 3,3 | 750 | 1.100 |
| 3212 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,2 | 12,0 | 7,0 - 9,0 | 3,3 | 750 | 1.100 |
| 3214 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,2 | 14,0 | 9,0 - 12,0 | 3,3 | 750 | 1.100 |
| 3216 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,2 | 16,0 | 11,0 - 13,0 | 3,3 | 750 | 1.100 |
| 3218 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,2 | 18,0 | 12,0 - 15,0 | 3,3 | 750 | 1.100 |
| 3220 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,2 | 20,0 | 14,0 - 17,0 | 3,3 | 750 | 1.100 |
| 3225 AF | Aluminium | Stahl vz. | Flachrundkopf | 3,2 | 25,0 | 17,0 - 22,0 | 3,3 | 750 | 1.100 |
| 4005 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 5,0 | 0,5 - 2,5 | 4,1 | 1.250 | 1.800 |
| 4006 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 6,0 | 1,0 - 3,0 | 4,1 | 1.250 | 1.800 |
| 4007 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 7,0 | 2,0 - 4,5 | 4,1 | 1.250 | 1.800 |
| 4008 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 8,0 | 3,0 - 5,0 | 4,1 | 1.250 | 1.800 |
| 4010 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 10,0 | 5,0 - 6,5 | 4,1 | 1.250 | 1.800 |
| 4012 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 12,0 | 6,5 - 8,5 | 4,1 | 1.250 | 1.800 |
| 4014 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 14,0 | 8,0 - 10,5 | 4,1 | 1.250 | 1.800 |
| 4016 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 16,0 | 10,0 - 12,5 | 4,1 | 1.250 | 1.800 |
| 4018 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 18,0 | 12,0 - 14,5 | 4,1 | 1.250 | 1.800 |
| 4020 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 20,0 | 14,0 - 16,5 | 4,1 | 1.250 | 1.800 |
| 4022 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 22,0 | 16,0 - 18,5 | 4,1 | 1.250 | 1.800 |
| 4025 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 25,0 | 16,5 - 21,5 | 4,1 | 1.250 | 1.800 |
| 4030 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 30,0 | 21,5 - 26,5 | 4,1 | 1.250 | 1.800 |
| 4035 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 35,0 | 26,0 - 31,5 | 4,1 | 1.250 | 1.800 |
| 4040AF | Aluminium | Stahl vz. | Flachrundkopf | 4,0 | 40,0 | 31,0 - 36,0 | 4,1 | 1.250 | 1.800 |
| 4806 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 6,0 | 0,5 - 3,0 | 4,9 | 1.850 | 2.600 |
| 4808 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 8,0 | 2,5 - 4,5 | 4,9 | 1.850 | 2.600 |
| 4810 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 10,0 | 4,5 - 6,0 | 4,9 | 1.850 | 2.600 |
| 4812 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 12,0 | 6,0 - 8,0 | 4,9 | 1.850 | 2.600 |
| 4814 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 14,0 | 7,5 - 10,0 | 4,9 | 1.850 | 2.600 |
| 4816 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 16,0 | 9,5 - 12,0 | 4,9 | 1.850 | 2.600 |
| 4818 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 18,0 | 11,5 - 14,0 | 4,9 | 1.850 | 2.600 |
| 4820 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 20,0 | 13,5 - 17,0 | 4,9 | 1.850 | 2.600 |
| 4822 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 22,0 | 15,5 - 18,0 | 4,9 | 1.850 | 2.600 |
| 4824 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 24,0 | 17,0 - 20,0 | 4,9 | 1.850 | 2.600 |
| 4826 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 25,0 | 19,5 - 22,0 | 4,9 | 1.850 | 2.600 |
| 4827 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 27,0 | 20,0 - 24,0 | 4,9 | 1.850 | 2.600 |
| 4830 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 30,0 | 23,0 - 26,0 | 4,9 | 1.850 | 2.600 |
| 4832 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 32,0 | 25,0 - 27,0 | 4,9 | 1.850 | 2.600 |
| 4835 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 35,0 | 25,5 - 30,0 | 4,9 | 1.850 | 2.600 |
| 4840 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 40,0 | 30,0 - 36,0 | 4,9 | 1.850 | 2.600 |
| 4845 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 45,0 | 35,0 - 40,0 | 4,9 | 1.850 | 2.600 |
| 4850 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 50,0 | 39,5 - 45,0 | 4,9 | 1.850 | 2.600 |
| 4855 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 55,0 | 45,0 - 50,0 | 4,9 | 1.850 | 2.600 |
| 4860 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 60,0 | 50,0 - 55,0 | 4,9 | 1.850 | 2.600 |
| 4865 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 65,0 | 55,0 - 60,0 | 4,9 | 1.850 | 2.600 |
| 4870 AF | Aluminium | Stahl vz. | Flachrundkopf | 4,8 | 70,0 | 60,0 - 65,0 | 4,9 | 1.850 | 2.600 |
| 5006 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 6,0 | 0,5 - 3,0 | 5,1 | 2.150 | 3.100 |
| 5008 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 8,0 | 3,0 - 4,5 | 5,1 | 2.150 | 3.100 |
| 5010 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 10,0 | 4,5 - 6,0 | 5,1 | 2.150 | 3.100 |
| 5012 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 12,0 | 6,0 - 8,0 | 5,1 | 2.150 | 3.100 |
| 5014 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 14,0 | 8,0 - 10,0 | 5,1 | 2.150 | 3.100 |
| 5016 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 16,0 | 10,0 - 12,0 | 5,1 | 2.150 | 3.100 |
| 5018 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 18,0 | 12,0 - 14,0 | 5,1 | 2.150 | 3.100 |
| 5020 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 20,0 | 14,0 - 16,0 | 5,1 | 2.150 | 3.100 |
| 5025 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 25,0 | 16,0 - 21,0 | 5,1 | 2.150 | 3.100 |
| 5030 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 30,0 | 21,0 - 25,0 | 5,1 | 2.150 | 3.100 |
| 5035 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 35,0 | 25,0 - 30,0 | 5,1 | 2.150 | 3.100 |
| 5040 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 40,0 | 30,0 - 35,0 | 5,1 | 2.150 | 3.100 |
| 5045 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 45,0 | 35,0 - 40,0 | 5,1 | 2.150 | 3.100 |
| 5050 AF | Aluminium | Stahl vz. | Flachrundkopf | 5,0 | 50,0 | 40,0 - 45,0 | 5,1 | 2.150 | 3.100 |
| 6008 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,0 | 8,0 | 2,0 - 3,0 | 6,1 | 3.200 | 4.600 |
| 6010 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,0 | 10,0 | 2,5 - 5,0 | 6,1 | 3.200 | 4.600 |
| 6012 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,0 | 12,0 | 4,5 - 7,0 | 6,1 | 3.200 | 4.600 |
| 6016 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,0 | 16,0 | 6,5 - 11,0 | 6,1 | 3.200 | 4.600 |
| 6018 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,0 | 18,0 | 9,5 - 13,0 | 6,1 | 3.200 | 4.600 |
| 6020 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,0 | 20,0 | 11,0 - 15,0 | 6,1 | 3.200 | 4.600 |
| 6022 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,0 | 22,0 | 12,5 - 17,0 | 6,1 | 3.200 | 4.600 |
| 6025 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,0 | 25,0 | 15,0 - 21,0 | 6,1 | 3.200 | 4.600 |
| 6030 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,0 | 30,0 | 20,0 - 25,0 | 6,1 | 3.200 | 4.600 |
| 6035 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,0 | 35,0 | 24,5 - 30,0 | 6,1 | 3.200 | 4.600 |
| 6410 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,4 | 10,0 | 2,5 - 5,0 | 6,5 | 3.800 | 4.850 |
| 6412 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,4 | 12,0 | 3,0 - 7,0 | 6,5 | 3.800 | 4.850 |
| 6415 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,4 | 15,0 | 6,0 - 10,0 | 6,5 | 3.800 | 4.850 |
| 6418 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,4 | 18,0 | 9,0 - 13,0 | 6,5 | 3.800 | 4.850 |
| 6422 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,4 | 22,0 | 12,0 - 17,0 | 6,5 | 3.800 | 4.850 |
| 6426 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,4 | 26,0 | 16,0 - 21,0 | 6,5 | 3.800 | 4.850 |
| 6430 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,4 | 30,0 | 20,0 - 25,0 | 6,5 | 3.800 | 4.850 |
| 6435 AF | Aluminium | Stahl vz. | Flachrundkopf | 6,4 | 35,0 | 24,0 - 30,0 | 6,5 | 3.800 | 4.850 |
Alle Angaben ohne Gewähr. Angaben zu Klemmbereichen und Festigkeiten sind Richtwerte und können je nach Einsatzfall geringfügig abweichen.
Unsere Empfehlung:
Nieter – RAC 180
Nieter – RAC 210
Nieter – RAC 182
Nieter – RAC 211
Nieter – EB 500
